Angle grinders

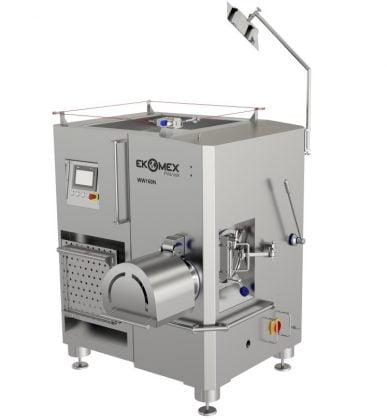

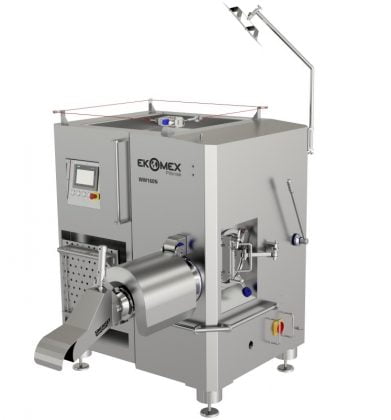

Automatic angle grinder WW-160N

The automatic angle grinder WW-160N is a universal machine for medium and large meat plants for grinding and cutting into a specific structure of fresh, chilled and frozen meat. It also works well with other food raw materials in poultry, pet food, fish, delicatessen and cheese plants.

Features of automatic angle grinder WW-160N

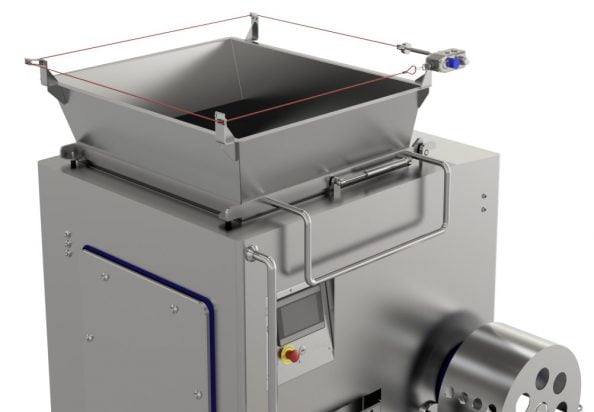

Appropriate construction of the hopper, housing, angular positioning of the screws (feeding and working), their appropriate construction, speed adjustment and speed difference ensure even flow of the raw material and good compression in the cutting tools and that provides the proper structure of the cutting.

PLC control in the automatic angle grinder WW-160N

PLC control enables motor load control, clear operation, current adjustment and regulation, programming, archiving and saving of program parameters in the touch panel.



  • Meat, poultry
  • Fishes
  • Cheese
  • Dania gotowe
  • Pet food
  • Warzywa i owoce

Technical data

Features of Ekomex grinders:

  • Robust, massive, smoothly polished construction made of stainless steel EN 1.4301.
  • Hygienic and ergonomic design provides easy operation, cleaning and maintenance.
  • High quality components

Additional equipment:

  • Smooth adjustment of the screws speeds
  • VERTICUT system – horizontal knife shaft for initial grinding of frozen blocks to -10 ° C, installed in the hopper.

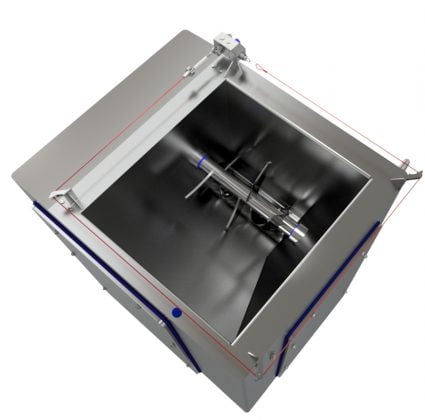

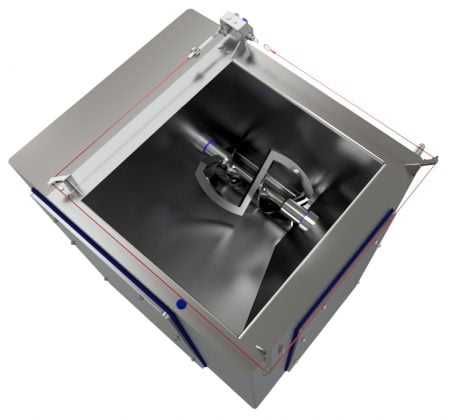

  • VERTIMIX system – horizontal paddle or Z-type mixing shaft – placed above the feeding screw, which works in the REVERSE mode during the PREMIX cycle. These systems have been developed to increase the range of operation of the machine as well as to improve the uniformity of the feeding the raw material towards the feeding screw.
  • SINGRISET separating head (S5000 model)
  • Column loading device for 200 l bins or type ZM-600 for big-box containers
  • Individual unloading height
  • Model
  • Standard hopper capacity
    350 / 500 l
  • Cutting tools
    Ø 160 mm [G160]
  • Configuration of cutting tools
    2 ÷ 5 parts
  • Feeding screw drive power
    2,2 kW
  • Main screw drive power
    37 kW
  • PLC control
    touch screen
  • Tool removal lever
  • Capacity
    up to 5000 kg/h*
  • Unloading height
    for 200 l bins
  • Multi-stage screw sealing
    rinsing channel
  • Screw housing
    CNC machined inner channels
grinder ww160n
